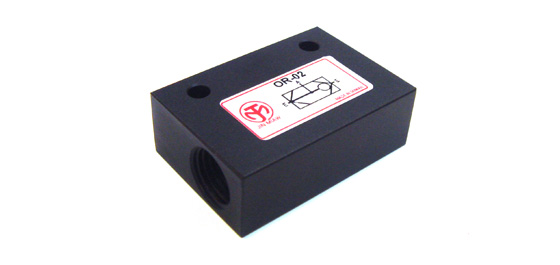

※此閘(OR)有兩個輸入口(E1,E2)，可從不同位置來控制，先作動者入氣，而輸出信號(A)，用於邏輯迴路。
This valve (OR) has two input inlets (E1,E2) and can be controlled in different position.
First activated position can get through to output signal (A). It can be used in logic circuit. |
|
| 規格表 (specification) |
| 型號 (Model) |
OR-02 |
使用流體
(Working fluid) |
空氣/AIR |
使用壓力
(Working pressure) |
0~9 kgf/c㎡ |
使用溫度
(Working temperature) |
0~60 ℃ |
配管孔徑
(Port size PT) |
1/4" |
| 重量 (Weight) |
228 g |
|
|
|
|
|
|
 |
|
|
| |
|
|
|
|
|
